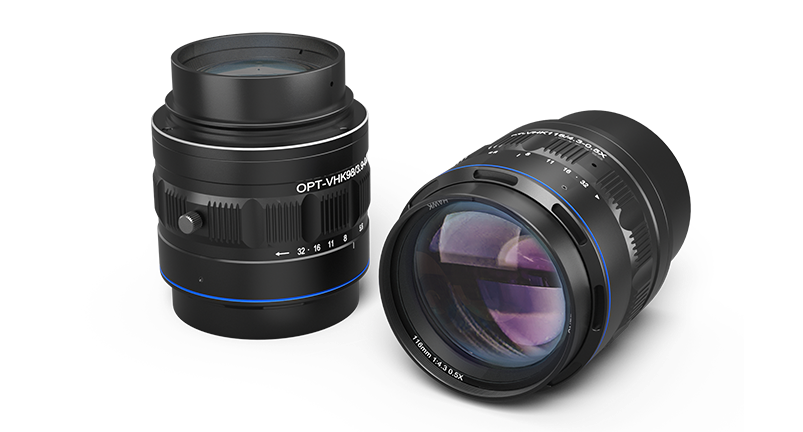

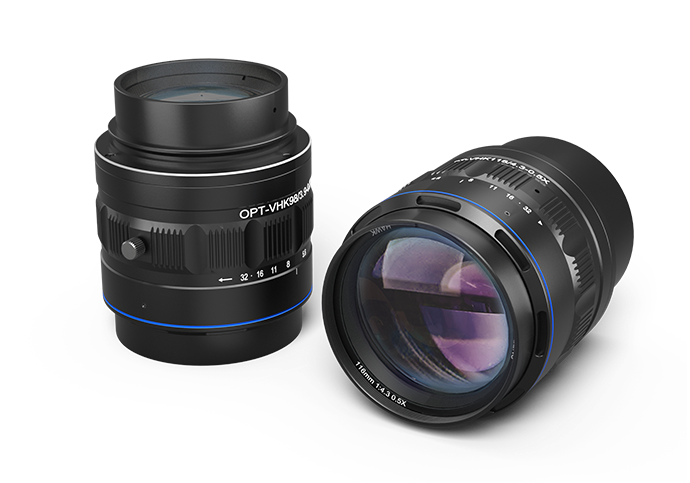

OPT-VHK116/5.4-0.67X

Product introduction

  • High resolution
High resolution optical design; Ø63 mm image circle[1],compatible with (16k)3.5 μm, (12k)5 μm, and (8k)7 μm line scan cameras
  • Low distortion
Total distortion < 0.22%[2], Min. distortion as low as 0.005%
  • High uniformity
High relative illumination across the entire image with low vignetting
  • Wide magnification range
0.02X - 2.1X
[1]Up to 126 mm image ciecle for OPT-VHK116/8.6-2.0X
[2]Distortion at primary magnification
