Coloretto Series Line Scan Lenses

Introduction

High standard optical design

Achromatic design of wide spectrum range from 400 to 700 nm; compatible with the line scan camera of 7 μm pixel size

Low distortion

Total distortion < 0.6%^[1]

Wide image circle range

Ø30 mm - Ø82 mm

Magnification

Range: 0.01X - 0.33X; suitable for various industrial applications

[1] Distortion at primary magnification

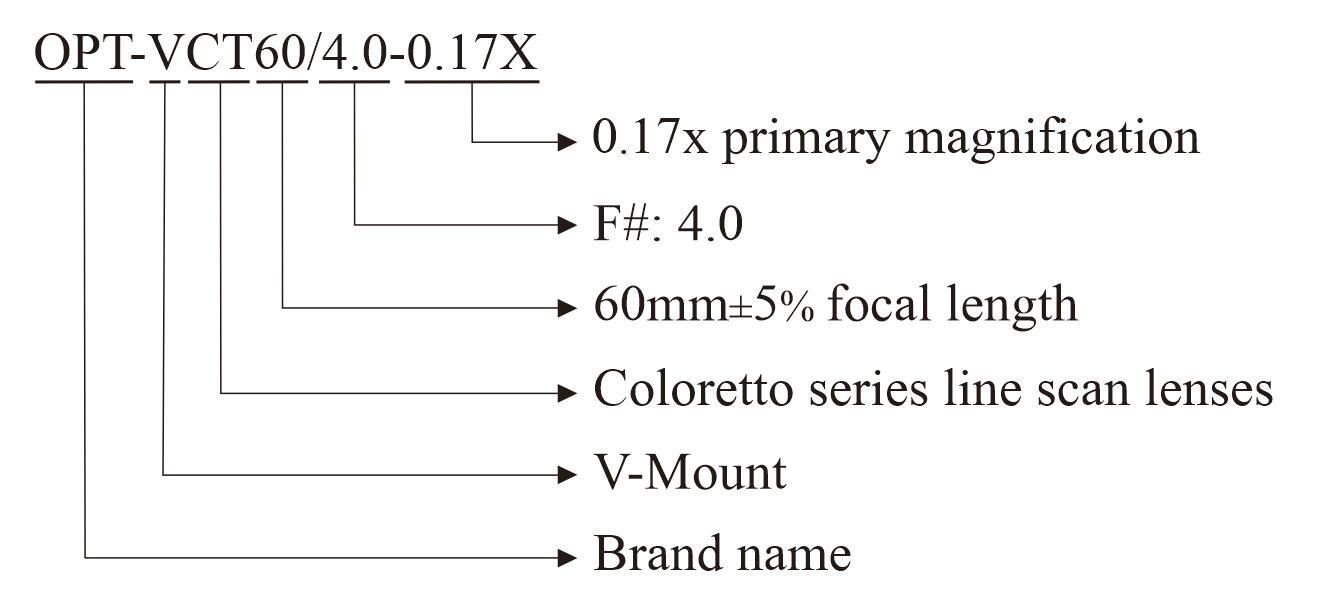

Specification Explanation
1.Working Distance (WD): The distance from the front of the lens to the object.
2.Aperture F/#: The actual working F/# of the telecentric lens.
3.Depth of Field: For a telecentric lens, the depth of field is estimated using the following formula:
F/#: The actual working F-number of the lens.
P: Sensor pixel size (5.5 μm for this calculation).
β: Lens magnification.
k: Dimensionless parameter based on the application; for measurement applications, k = 0.008 is used, but 0.015 can also be considered for calculation.
The depth of field at the nominal edge can still be used for measurement, but to achieve a clearer image, it is recommended to use half of the nominal depth of field.
5.Interchangeable Interface Accessories: Lenses marked with an asterisk (*) support the following optional interfaces:
OPT-RNxxxxxx-xxx-xxx287M42: Optional interfaces: M58, F-mount.
OPT-RNxxxxxx-xxx-xxx432M58: Optional interfaces: M42, M58, F-mount.
OPT-RNxxxxxx-xxx-xxx620M72: Optional interfaces: M42, M58, F-mount, M72.
OPT-RNxxxxxx-xxx-xxx820M90: Optional interfaces: M72, M90, M95.

Product List
