SciSmart Applications——Image Stitching

     Image stitching, is to combine two or more images with overlapping areas into one image. Image stitching here refers to horizontal plane splicing or plane vertical splicing. It is required that the camera is horizontal or the object is moving horizontally when it is taken(allowing x, y offset and plane angle rotation), rather than rotated 360 degrees panorama mosaic. The main application is that the area is too large to complete the shooting with the camera, and the image is spliced and fused after multiple shooting by the camera.

Application: Image Stitching.

Software: SCI Smart Camera 2.4.1804.x.x and above.

Function: Stitch two images with overlapping areas into one image.

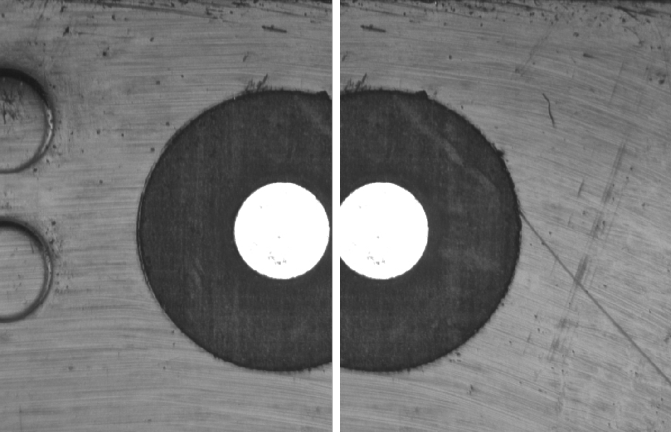

Figure1, Original image

Steps：

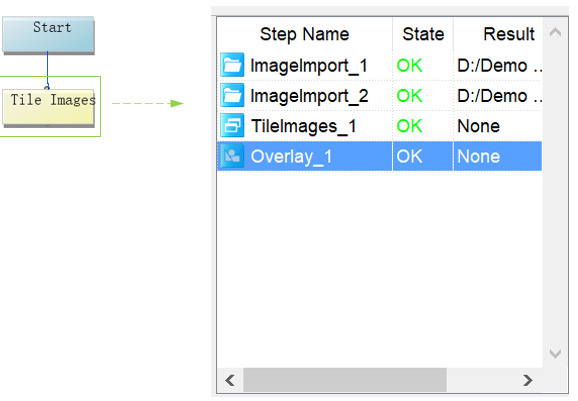

Figure2, Total procedure of the case

Step1: Read image by “Image import”. replace the path of the images located, For example: D:/Demo Project/ Image stitching /image /1.jpg.

Step2: Stitch two images into one image by "Tile Images" tool.

Step3: Display the results by “Overlay”.

Result image：

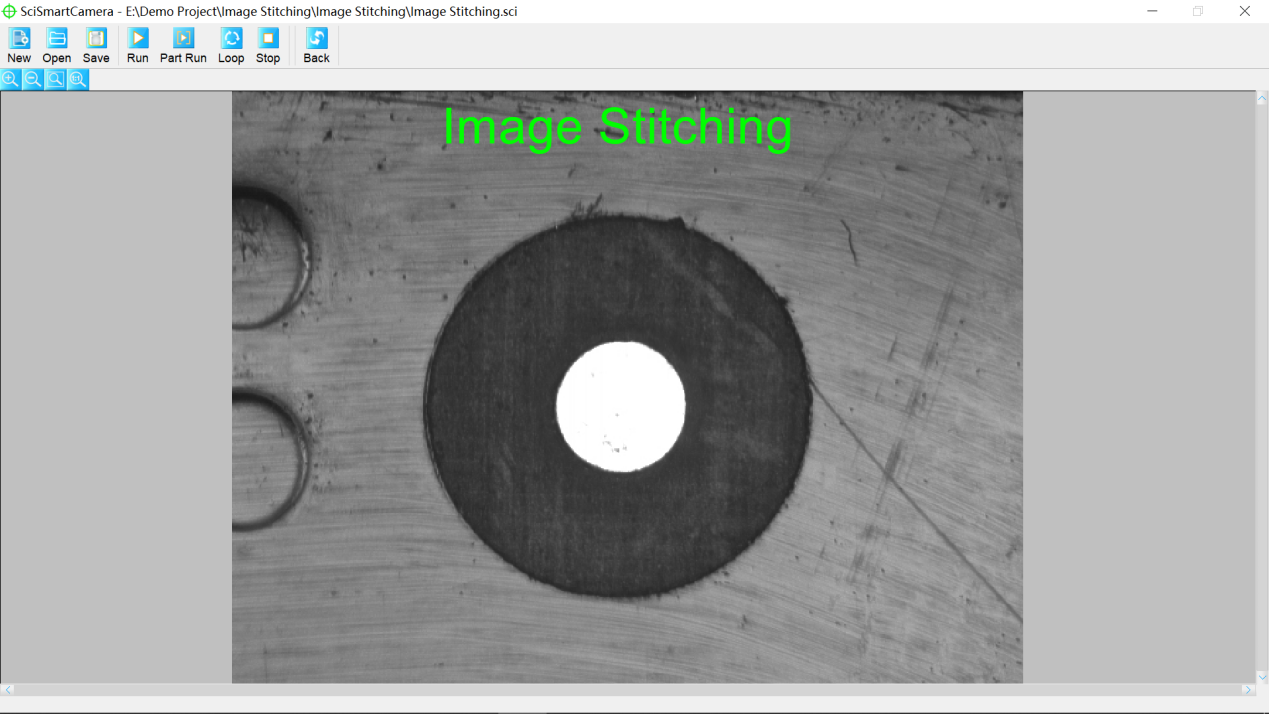

Figure4, Software interface
