SciSmart Applications——Image Filtering

     While the process of imaging, transmission and description, the image will be disturbed from various signals thus the noise would be generated. Likewise, the noises always appear as isolated pixel points or pixel blocks, which have strong visual effects on the image. In digital image processing, image filtering has always been adapted to process such image.

 Image filtering is a process, which can restrain the noise signal of the image and ensure the detail of the image is not destroyed. The filtering methods include mean filter, median filter, Gaussian filter, Laplace filter and Sobel filter etc.

Application: Restrain the noise signal.

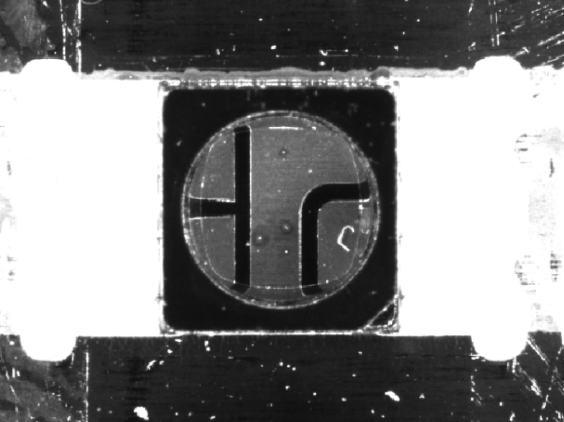

Figure1, Original image

Steps：

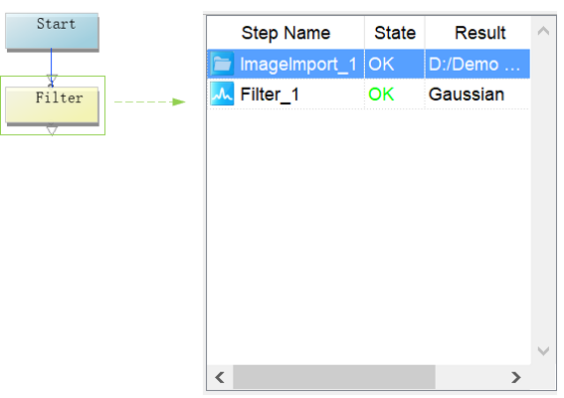

Figure2, Total procedure of the case

Step1：Read image by “Image import”. replace the path of the images located, For example: D:/Demo Project/ Image Filtering/image /1.jpg.

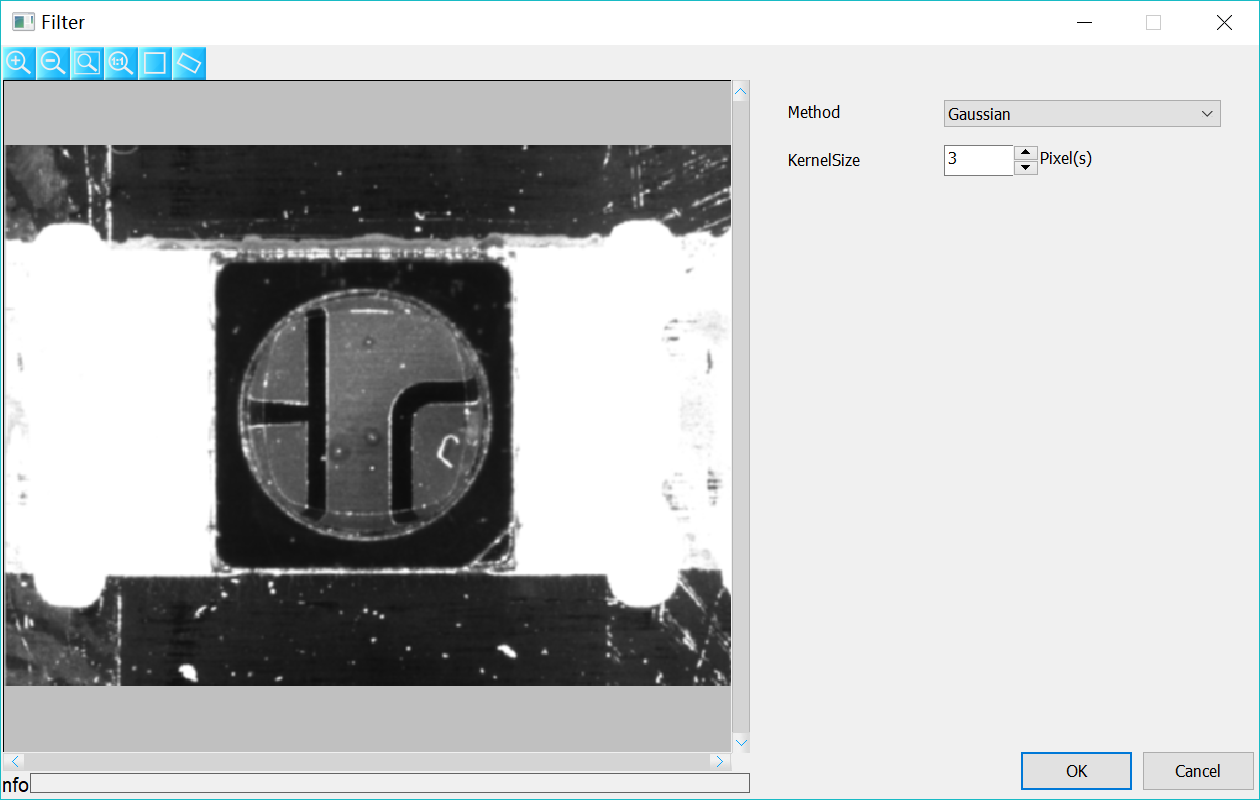

Figure3, Filtering tool interface

Step3: Display the results by “Overlay”.

Result image：

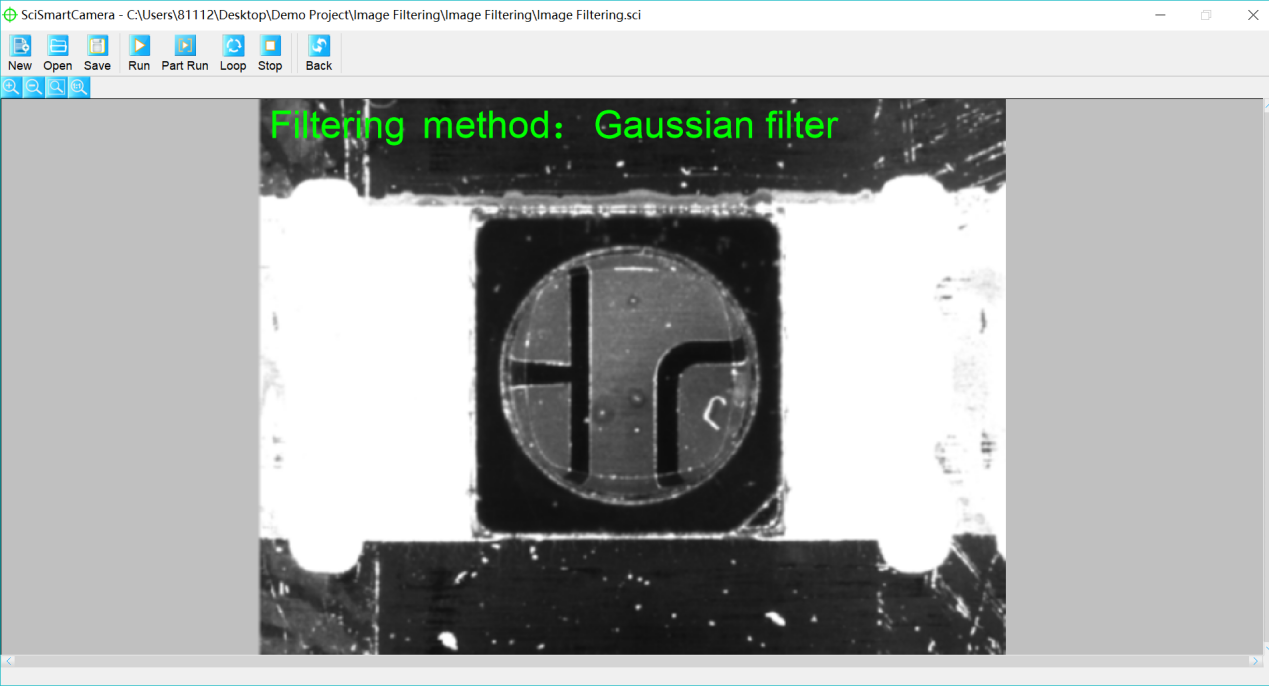

Figure4, Software interface
