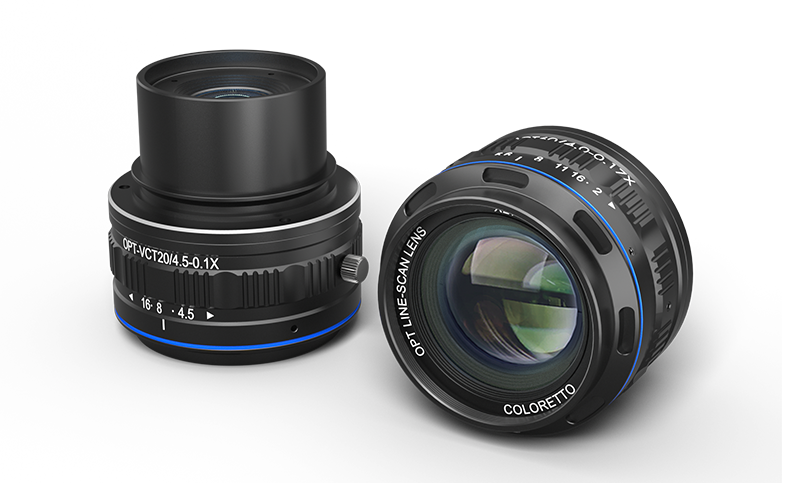

Line Scan Lenses
The distortion rate is <0.1%, with coating spectrum coverage from 400-900 nm (Visible Light/Near-Infrared). Featuring an achromatic design for the visible light spectrum, the line scan lenses offer a magnification range of 0.01X to 2.1X, ensuring high accuracy and clarity.
Selection Guides -

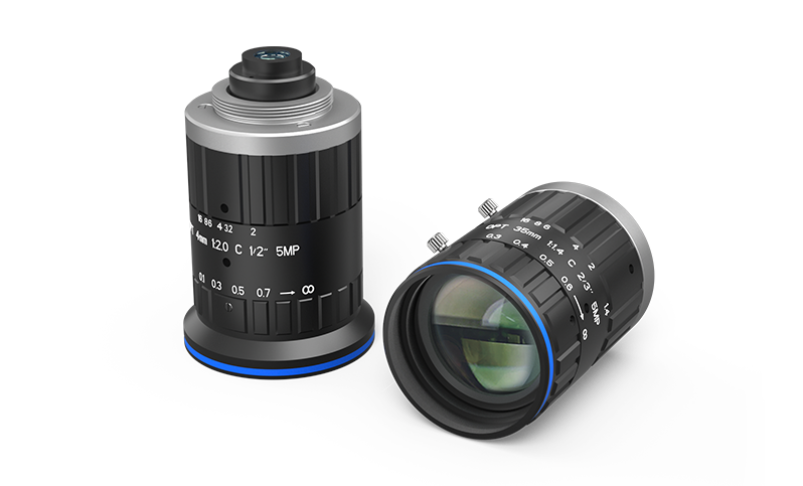

Fixed Focal Lenses
The low distortion design ensures high-precision measurements. With a resolution of 230 lp/mm, the fixed focal lenses support chip coverage from 1/2″ to Ø67mm and is compatible with a matchable pixel size of 2.2μm, delivering exceptional clarity and accuracy for demanding applications.
Selection Guides -

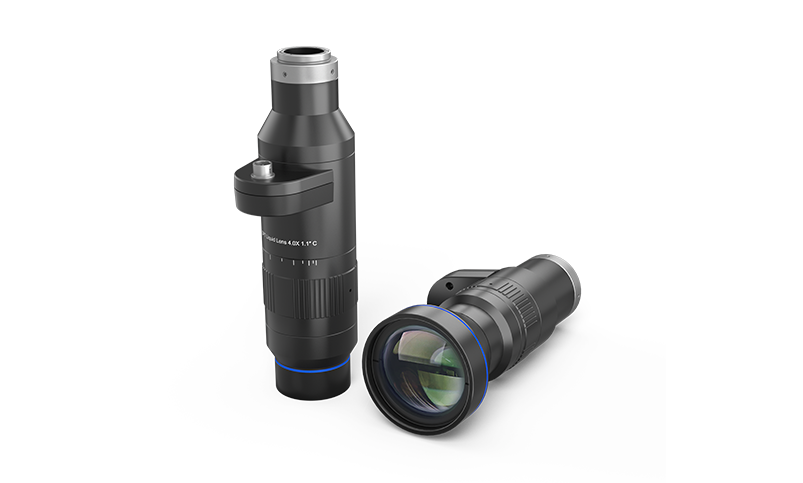

Telecentric Lenses
The coating wavelength range spans 400–1000 nm (Visible Light to Near-Infrared), with a minimum distortion of <0.0001%. The telecentric lenses feature high contrast, a large aperture, and wide magnification coverage, ensuring excellent clarity and versatility for target surface inspection across various magnification ranges.
Selection Guides -

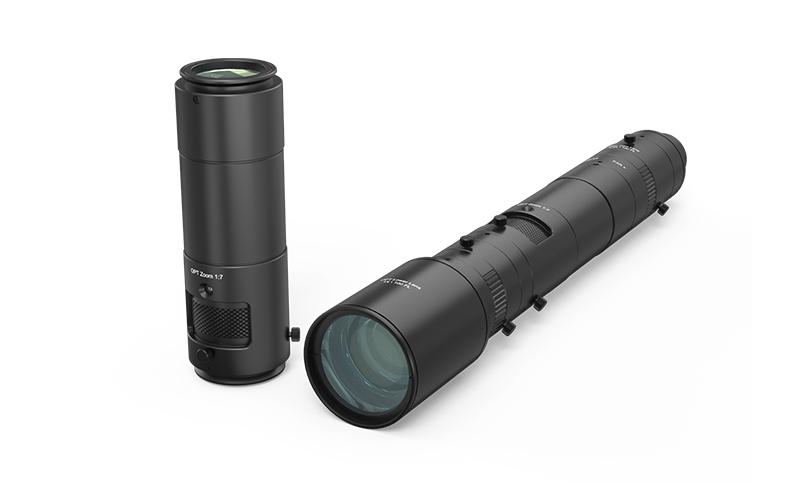

Microscopic Lenses
The system is easily configurable for various magnification levels and chip sizes. With a 7X zoom module and compatibility with all Visible Light/Near-Infrared spectra, the Microscopic Lenses feature a fixed working distance with no focus shift during zooming. The magnification range spans from 0.325X to 4.55X for versatile inspection.
Selection Guides -
Liquid Lenses
The liquid lens adjusts repeatedly to maintain a focus accuracy of +/-0.1dpt, with a response time of <4ms. The Liquid Lenses offer a maximum resolution of 145 lp/mm and is compatible with a matchable pixel size of 3.45μm, ensuring high precision and clarity in measurements.
Selection Guides
