AOI pin fit detection
AOI pin fit detection
Application description
Visually detect the deviation of the pin fitting position, use the matching to position the IC, Blob analysis to position the pin to calculate the pin deviation, and then mechanically correct the deviation.
Field of view size: 0.9mm * 1.2mm, accuracy requirement: 0.005mm.

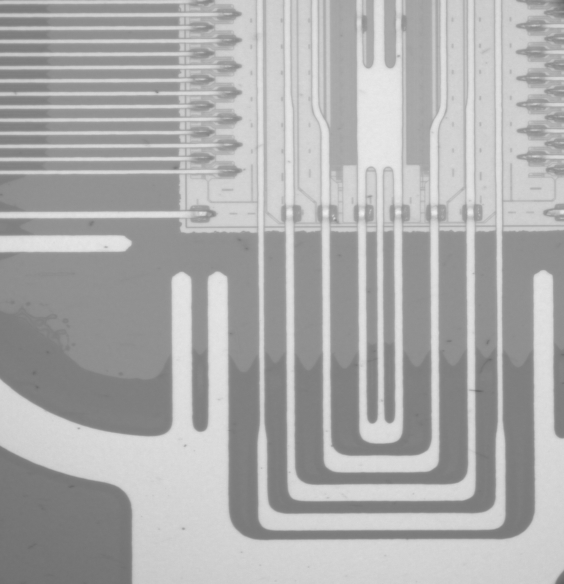

Original Image
|

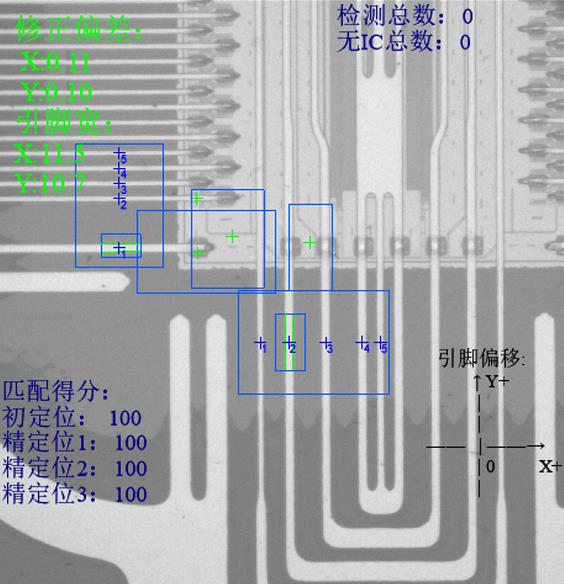

Result Image
|
|
