SciSmart Applications——Blob analysis

     In machine vision, Blob refers to the image with a similar color, texture and other features of a connected area. Blob analysis is the image binarization,segmentation foreground and background, and then connects the area detection,which get Blob block process. In simple terms, blob analysis is to find out in a "smooth" area a small area where "grayscale abrupt changes" occur.

Figure 1 Count the white object

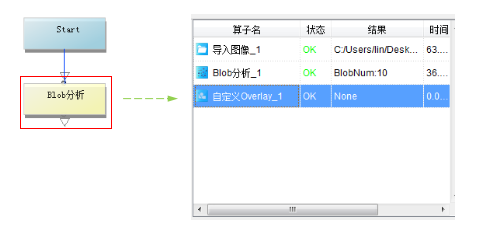

Figure 2 Total procedure of the case

Step1：read image by “Image import”. replace the path of the images located, For example: D:/Demo Project/Blob analysis/Blob analysis/1.jpg.
Step2：Locate the Objects by “Blob analysis” Algorithm.
Step3：Display the results by “Overlay”.

Figure 3 Software interface
